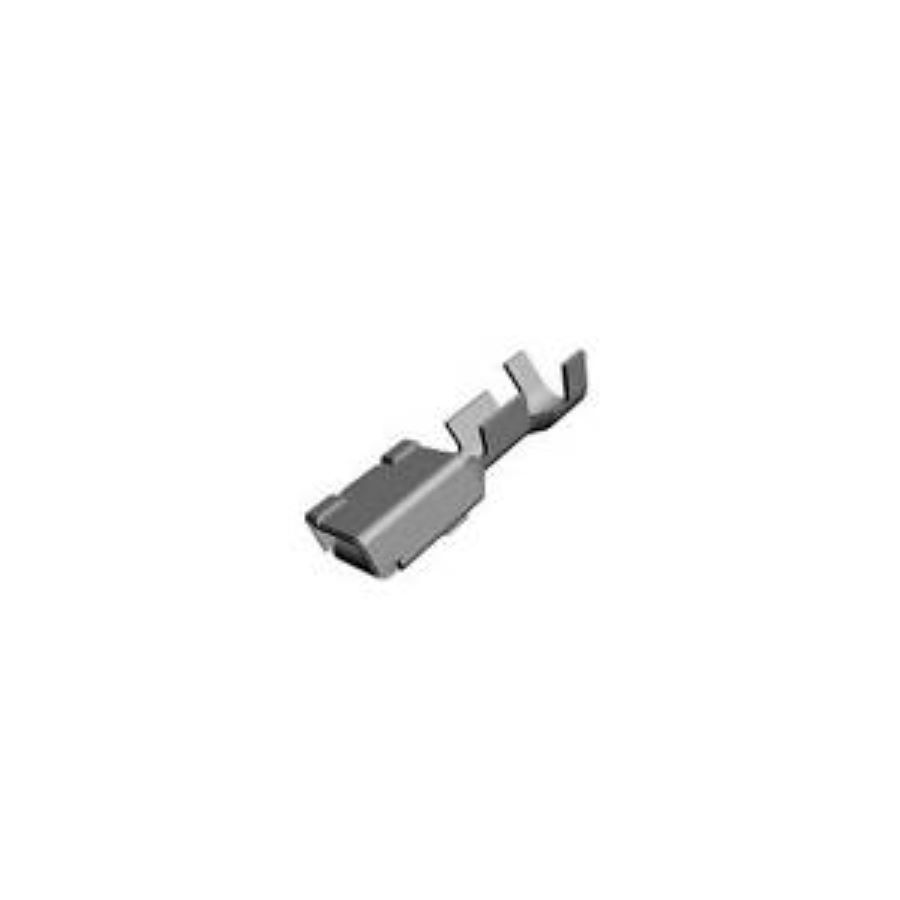

175090-1
Manufacturer:
TE Connectivity
Mfr.Part #:
175090-1
Datasheet:
Description:
Terminals Cable, Free Hanging 20 AWG Female
| Parameter | Value |
|---|---|
| Length | 19.5072 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 4.3 mm |
| Packaging | Bulk |
| Depth | 6 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Quick Connect |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Tab Width | 4.7498 mm |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 20 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Termination Style | Crimp |
| Insulation Diameter | 2.7 mm |
| Mating Tab Width | 4.8006 mm |
| Tab Length | 8.001 mm |
| Tab Thickness | 800 µm |
| Sealable | Yes |
Stock: 5562
Distributors
pcbx
pcbxUnit Price$0.50302
Ext.Price$0.50302
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50302 | $0.50302 |
| 10 | $0.25151 | $2.51510 |
| 50 | $0.19347 | $9.67350 |
| 100 | $0.14882 | $14.88200 |
| 500 | $0.11448 | $57.24000 |
| 1000 | $0.08806 | $88.06000 |
| 3000 | $0.08806 | $264.18000 |
| 5000 | $0.08353 | $417.65000 |
| 10000 | $0.07924 | $792.40000 |
| 30000 | $0.07517 | $2255.10000 |
| 50000 | $0.07130 | $3565.00000 |
